Overview
These guides serve to explain how to install and use Stringman, as well as how to build each hardware revision from scratch.
Installing an Assembled Stringman

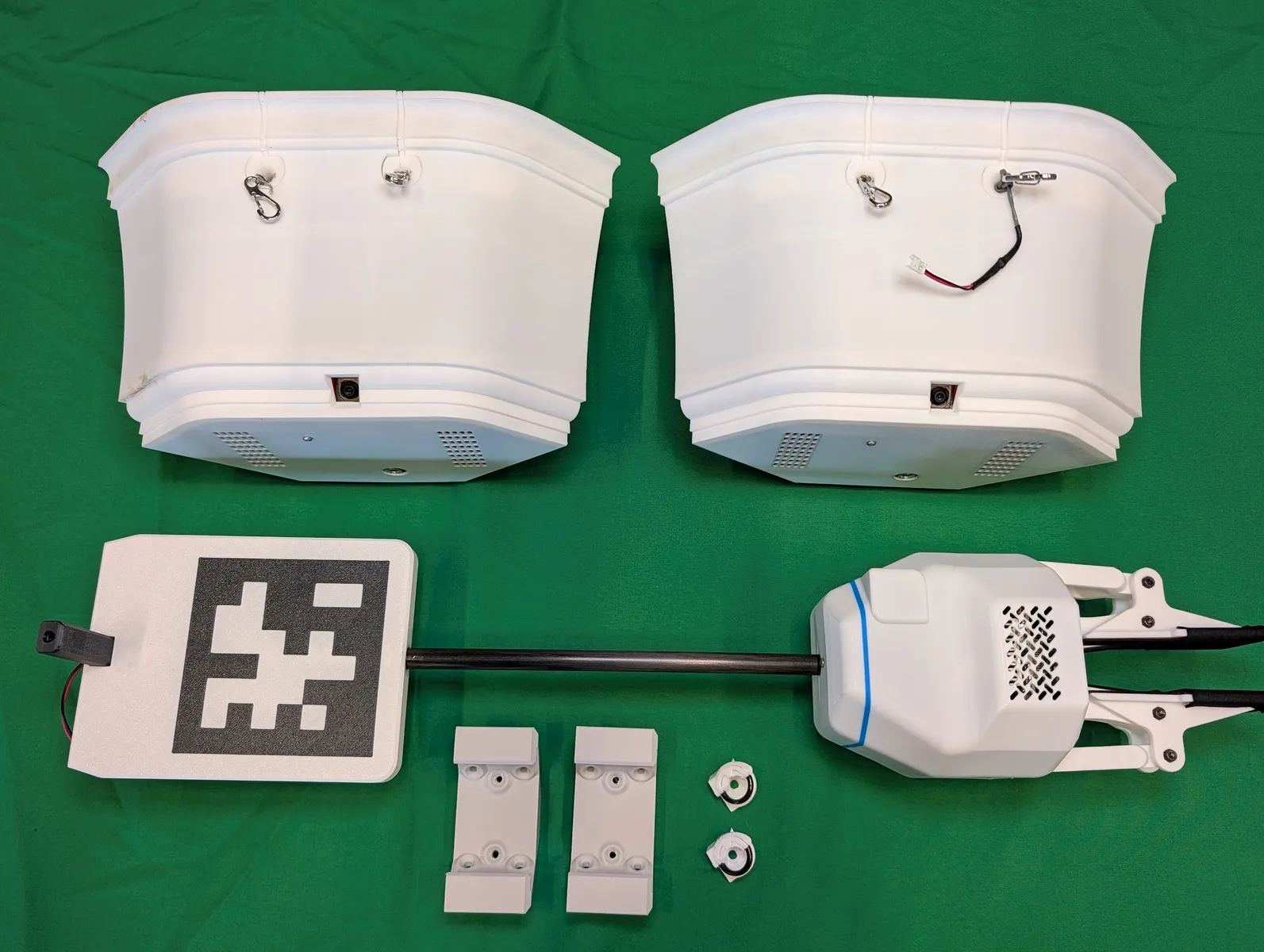

If you have purchased a Stringman robot from Neufangled Robotics, and are ready to install it,
- Start with the Usage Guide to make sure you can run the motion controller and connect the web ui on your computer.

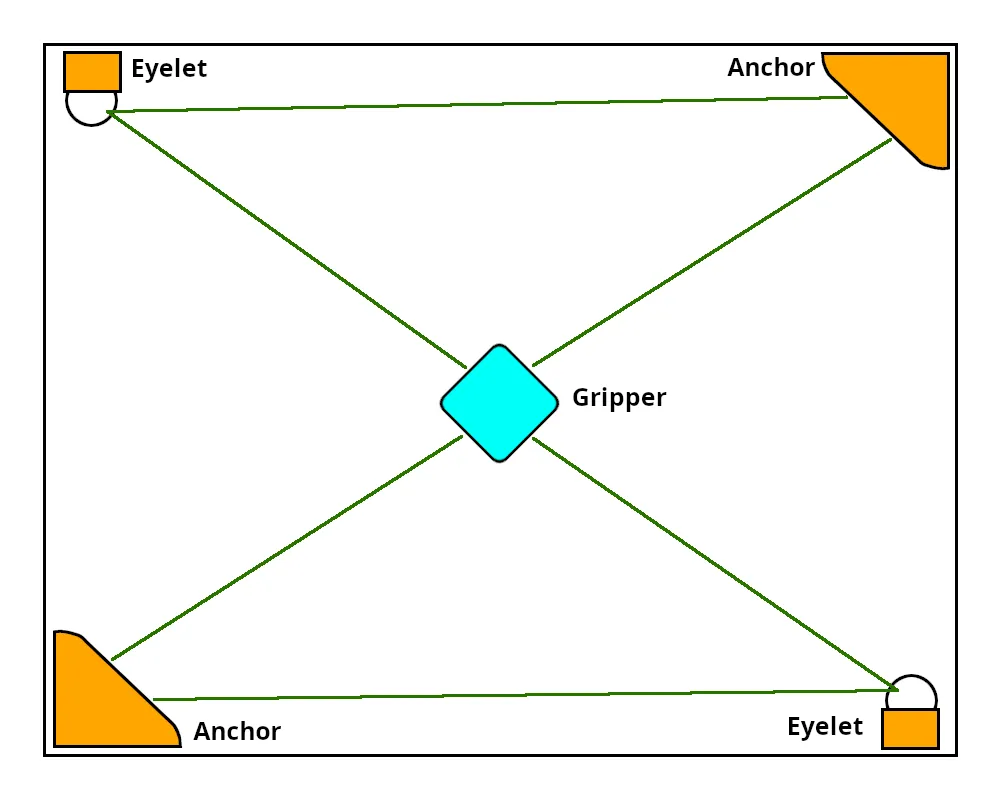

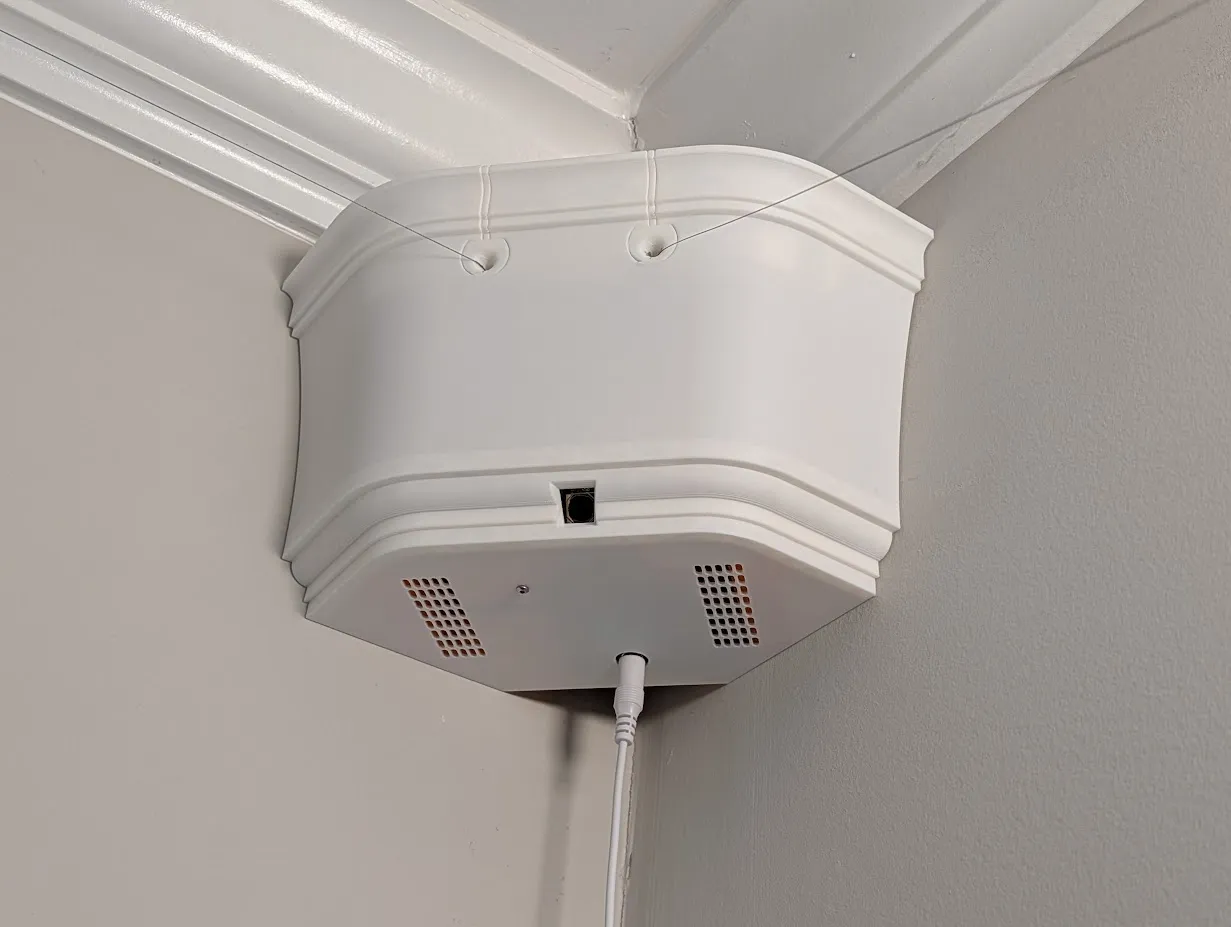

- Follow the Installation Guide to put mount the anchors on the wall and hang the robot.
Building a Stringman Robot
Newest Design
- The newest hardware version of the anchors is the Pilot version (1). Follow the Anchor Build Guide for assembly.
- The newest hardware version of the gripper is the Arpeggio version (2). Follow thge Arpeggio Gripper Build Guide
Earlier versions

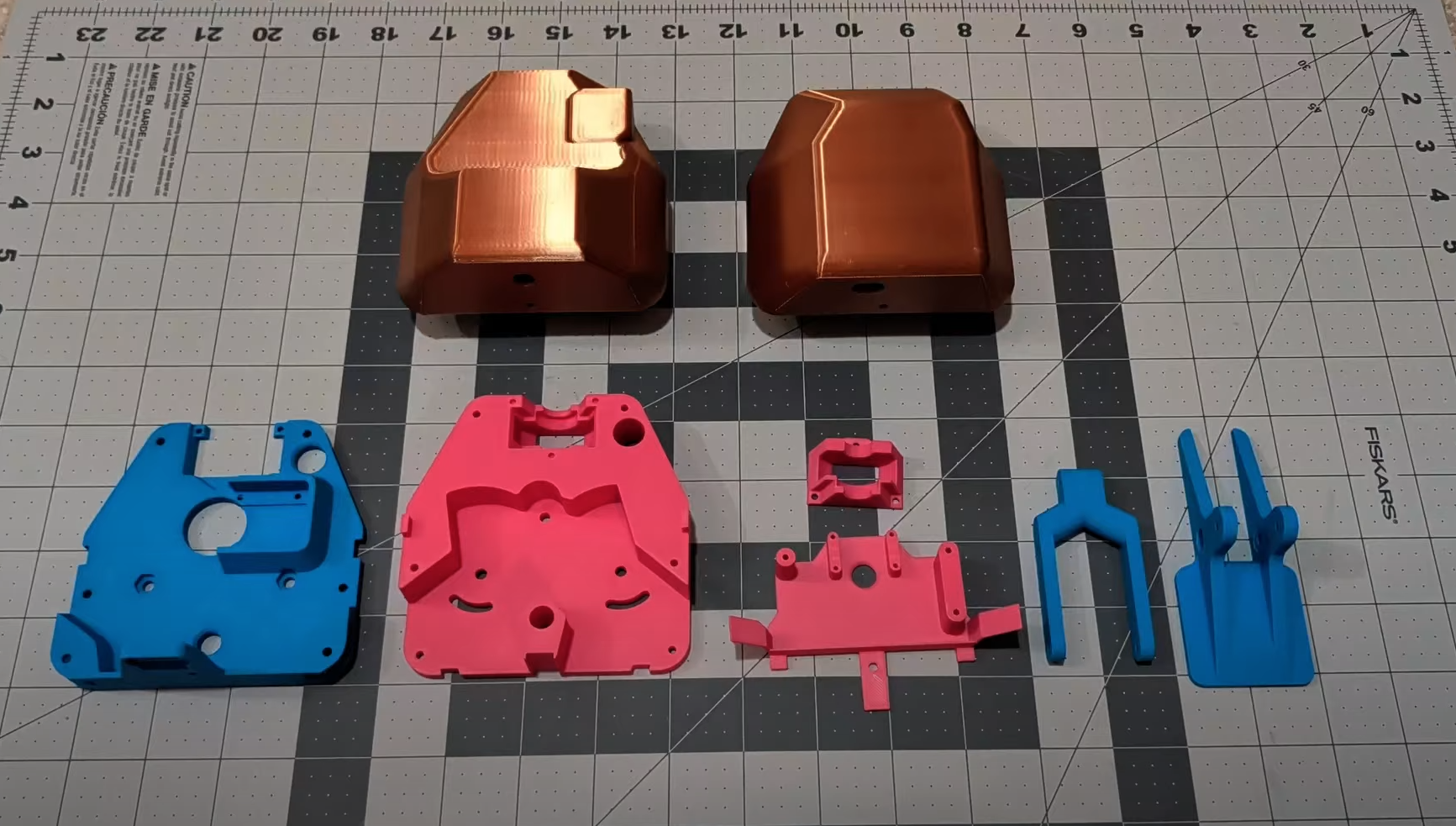

STL files and BOM
Refer to the downloads page
Safety and Legal
This is a prototype, it won't always work. Sometimes when moving fast the nema 17 motors in pilot version anchors will miss steps, and the gripper will swing down suddenly, before reeling itself back up. We are doing everything we can to prevent this in the next anchor hardware revision. But for now, please be aware of this risk and always keep the kill switch at hand.
The user assumes full responsibility for any injury, damage, or loss resulting from the installation or use of the hardware.
The design for Stringman is published under an Apache 2.0 license.
This documentation is published under a Creative Commons BY-SA 4.0 license
