Arpeggio Anchors DIY Hardware Kit

Build it Yourself

This pair of anchors features four powerful and silent Damiao hub motors. They can position a 4 kg payload anywhere in a room up to 7 meters from ceiling corner to opposite floor corner. Two anchors are mounted in opposing corners and in the other two corners ceramic eyelets are mounted. Three tethers are composed of 40 lb test braided fishing line, with one being a FEP-jacketed high-strength wire to supply power to the gripper, or whatever end effector you come up with.

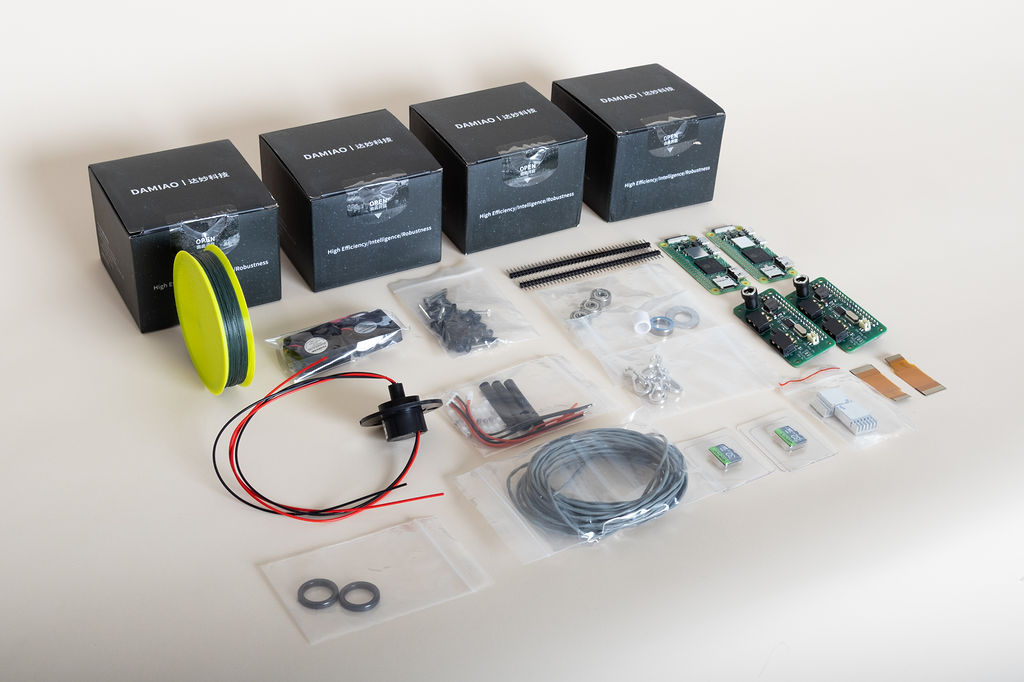

What's Included

• 4 Damiao DM-H6215 Motors
• 5A 2-wire slip ring
• 50m of braided fishing line
• 7m FEP power tether line
• 2 Raspberry Pi Zero 2W
• 2 aluminum heatsinks
• 2 Raspberry Pi Camera Module 3 (not pictured above)
• 2 4cm ribbon cables
• 2 Neufangled Arpgeggio Anchor Hats (PCBs)
• bearing kit for powerline spool
• bearings for support spools
• 4 small carabiners
• 2 ceramic rings
• 1 JST-ZH connector male
• 2 JST-ZH connector female
• solder seal connectors
• heat shrink tubing
• All necessary screws and washers
• 2 DC barrel jack extension cables.
• 2 5A power supplies (north american plugs) (not pictured)

What You Need to Provide

You will need to download and print the STLs from our downloads page. All parts can be printed in PLA of any color you like.

These anchors will use two outlets.

How To Build

Assembly takes roughly 1–2 hours. Please refer to the online build guide for detailed information on the required tools and steps.

Soldering is not necessary, but you do need to use a heat gun to splice wires with solder seal connectors.
